Automatic Replication of Azure Premium files across regions

One of the key limitations of Azure Premium files is that it doesn’t support RA-GRS or GRS Replication. Customers who wants to replicate his Fslogix profiles and MSIX Shares as part of the DR strategy need to rely on third party providers.

In this Blog let us see how we can automate the replication of Azure Premium files with the help of Azure DevOps and Azcopy.

The below logical Architecture diagram explains the automated replication process.  In this implementation, the Azure DevOps pipeline will be leveraged to call the azcopy powershell script which is stored in Azure Repo or in Github. We will leverage the Release schedules in DevOps Pipeline to automatically trigger the execution of the script in defined intervals.

Logical Architecture Diagram

SctEdulE Admi
GMT sat
Fik Share
(9)
Re-us Eæt
Az copy F ile Sync
LIS Eag
ding Amopy
(9)
RG-us
File e
LIS West

Requirements

  • Source and Destination File shares
  • Azure Devops Project integrated with your Azure Subscription
  • Azure DevOps Repo or Github repo

Azcopy command to Sync fileshares

The Azcopy generic syntax for syncing file shares are given below.
azcopy sync ‘https://<source-storage-account-name>.file.core.windows.net/<file-share-name><SAS-token>‘ ‘https://<destination-storage-account-name>.file.core.windows.net/<file-share-name><SAS-token>‘ –recursive



The powershell script is saved in my Github Repo.
wvd/azcopy.ps1 at main · amalkabraham001/wvd · GitHub

Configuration Settings

Head to Azure Devops portal via https://dev.azure.com and navigate to your DevOps Project

Navigate to Repos by hovering your mouse over the name of your project, and selecting the Repos icon. You can select it from the All projects list, or from the Recent projects list if you’ve accessed it recently.

Click on the “three dots” next to your Repo. From the Repo drop down Click on “+New”–> File

O WVD-Deployments
ca Clone
Fork
+ New
Upload file(s)
Download as Zip
Hide files tree
u
V main v
Files
Contents
File
Folder
History
MI README.md
Introduction

In the new file dialog, provide the file name and click on Create.

New file
New file name
Fileshar&opy.psl
use slashes to create multiple subfolders like •sub/folder"_
Cancel
Create

Provide the azcopy powershell script which I have mentioned in the above section and click on Commit to save the file

<img src=" https://amalcloudblogs.s3-ap-southeast-1.amazonaws.com/Azure+Premium+Files/pic3.png&quot; alt="Filesharecopy.psl Contents 1 aram ( Ssourcesastoke Stargetsasto . windows Commit

Click on Pipelines under your project and Select Releases

Commits
Pushes
Branches
Tags
Pull requests
Pipelines
Pipelines
Pipelines
Environments
Releases
Library
Task groups
Deployment groups

Click on “New Pipeline”

No release pipelines found
Automate your release process in a few easy steps with a new pipeline
New pipeline

The add template dialog will pop up automatically, Click on escape to view the new release pipeline page.

Provide a name you’re your pipeline by clicking on the “New release pipeline” in the top.

Machine generated alternative text:
All pipelines
Pipeline Tasks
> FSLogix Profile Sync Pipeline
FSLogix Profile Sync Pipeline
Variables
R

Under Artifacts, Click on “+Add an artifact” to link the Repository to your pipeline.

Artifacts 4- Add
Add an
artifact

In the “Add an artifact” dialogue, select Azure Repos and select the Repo where you created your azcopy script and click on Add.

Add an artifact
Source type
Build
Azure Re...
GitHub
5 more artifact types v
Project •
Deployment
Source (repository) •
WVD•Deployments
Default branch •
maid

Under Stages, Click on “+add a stage”.

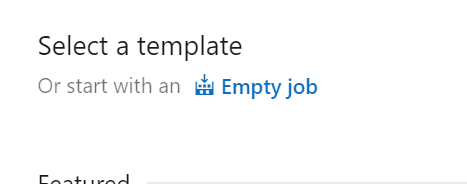

In the select a template dialog, select empty Job

Select a template
Or start with an Empty job

Provide the name of Stage. Stages are meant to separate the releases from Dev,Test, Production. Give any name to your stage and click the close button.

Stage
Replication-Demo
Properties
Name and owners of the stage
Stage name
Replication-Deme
Stage owner
Amal K Abraham

Under the stages, Click on the “0 job, 0 task” field to start adding the tasks to pipeline

까sm丁하에1
owea-uone)lldau '§

Click on “Add a task to agent Job” by click on the “+” button next to Agent Job to add the Azure PowerShell task to your pipeline.

Replication-Demo
Deployment process
Agent job
Run on agent
Add a task to Agent job

In the Add tasks dialogue, Search for Azure Powershell

Machine generated alternative text:
Add tasks
All
Build
CD Refresh
Utility Test
.NET Core
Package
Search
Deploy
Tool
Marketplace
Build, test, package, or publish a dotnet
application, or run a custom dotnet
command

From the search results, Select Azure Powershell and Click on Add

Azure PowerShell
Run a PowerShell script within an Azure
environment
Add

Provide a name for your task

Select the Azure subscription you linked to the DevOps where the storage accounts reside

Select the script type as “Script file path” and select the script from the Repo.

In the Azure Powershell version, select the latest installed version

Azure PowerShell version options A
Azure PowerShell Version O
Specify
Latest installed version
other version

Click on “Save” from the top right corner to save the pipeline.

Machine generated alternative text:
All pipelines >
Pipeline Tasks v
Stage 3
Deployment process
Agent job
Run on agent
New release pipeline
Variables Retention Options
History
a save
O I Manage
Subscription *
)psspn
Create release
C)
ed to resource group 'mysecureRGI

From the Pipeline page, Click on “Schedule not set” icon to set the schedule

Deployments
Scheduled release trigger
Schedule
not set

In the Scheduled release trigger dialogue, define the schedule and click on close.

Scheduled release trigger
Define schedules to trigger releases
Enabled
Create a new release at the specified times
O sat at 3:00
CD Mon CD Tue CD wed D Thu D Fri sat
Sun
03hV 00m v (UTC) Coordinated Universal Time
C) Only schedule releases if the source or pipeline has changed

You can test the replication manually by clicking on new release from the top right corner of your release pipeline

Machine generated alternative text:
New release pipeline
Releases Deployments Analytics
Create release
Edit
All releases v

Hope you find this blog useful. Please let me know your questions if any.

Regards,

Amal K Abraham

WVD Community

India
